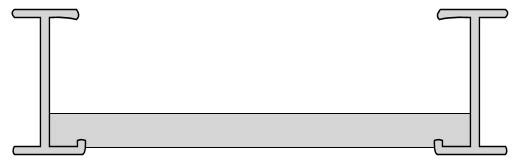

34A - 4" Side Height, Heavy Duty Ladder Tray
34A - Heavy Duty Aluminum Ladder Tray
Side Height - 4"
Load Depth - 3"
NEMA Load / Span Rating - 20A / 16B
Cable Loading (lb/ft) -
10' Span - 220 (lb/ft)
12' Span - 152 (lb/ft)
14' Span - 112 (lb/ft)
16' Span - 86 (lb/ft)
18' Span - 67 (lb/ft)
20' Span - 55 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".
Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 34A06010-09 |
|
6" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A06010-09 | |
| 34A09010-09 |
|
9" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A09010-09 | |
| 34A12010-09 |
|
12" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A12010-09 | |
| 34A18010-09 |
|
18" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A18010-09 | |
| 34A24010-09 |
|
24" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A24010-09 | |
| 34A30010-09 |
|
30" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A30010-09 | |
| 34A36010-09 |
|
36" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A36010-09 | |
| 34A42010-09 |
|
42" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 34A42010-09 | |
| 34A06010-09L |
|
6" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A06010-09L | |
| 34A09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A09010-09L | |
| 34A12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A12010-09L | |
| 34A18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A18010-09L | |
| 34A24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A24010-09L | |
| 34A30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A30010-09L | |
| 34A36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A36010-09L | |
| 34A42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 34A42010-09L |
Aluminium
