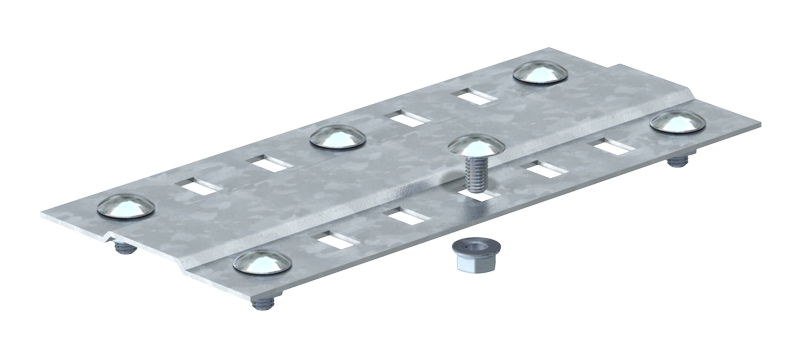

Joint Plate

Wide joint plate for use in all cable trays and wide span cable trays.
Including appropriate fastening materials.

Type Name Pack pcs.
Weight
lb/100pc
Sku
SSLB 100 FS
Joint Plate, 4" Width, Strip Galvanized 20 16.98 7070205
SSLB 150 FS
Joint Plate, 6" Width, Strip Galvanized 20 26.90 7070209
SSLB 200 FS
Joint Plate, 8" Width, Strip Galvanized 20 36.82 7070213
SSLB 300 FS
Joint Plate, 12" Width, Strip Galvanized 20 56.66 7070217
SSLB 400 FS
Joint Plate, 16" Width, Strip Galvanized 20 76.50 7070221
SSLB 500 FS
Joint Plate, 20" Width, Strip Galvanized 20 96.34 7070225
SSLB 600 FS
Joint Plate, 24" Width, Strip Galvanized 20 116.18 7070233
SSLB 100 DD
Joint Plate, 4" Width, Double Dipped 20 16.98 7070306
SSLB 150 DD
Joint Plate, 6" Width, Double Dipped 20 26.90 7070310
SSLB 200 DD
Joint Plate, 8" Width, Double Dipped 20 36.82 7070314
SSLB 300 DD
Joint Plate, 12" Width, Double Dipped 20 56.66 7070318
SSLB 400 DD
Joint Plate, 16" Width, Double Dipped 20 76.50 7070322
FSStrip Galvanised
DDDouble-Dip
Description

Wide joint plate for use in all cable trays and wide span cable trays.
Including appropriate fastening materials.
