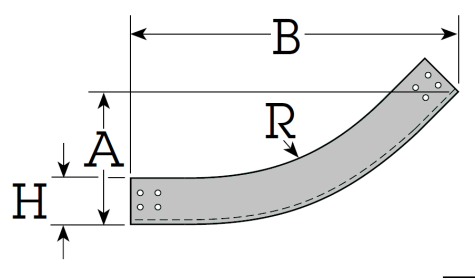

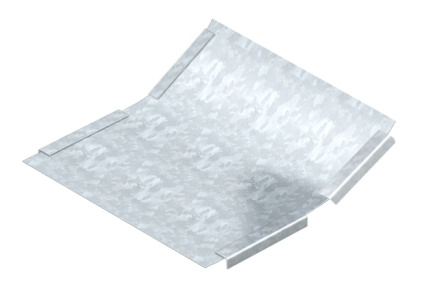

45° Inside Bend Cover, Steel

Available in Flanged and Flat styles only.

To order covers, substitute the "Tray
System" number (ǂǂ) with:
     7 = Flanged style cover
   67 = Flat style cover

Material code (*):
     S = Hot Dip Mill Galvanized to ASTM 653A
           G-90 coating 1.06 Mils Thick
     G = Hot Dip Galvanized after Fabrication to ASTM 123-B2
           2.55 Mils Thick (Replaced ASTM 386)

Example:
 246S06060 = 45° Inside Bend.
     7S06060 = Flanged Style Cover for 45° Inside Bend.
   67S06060 = Flat Style Cover for 45° Inside Bend.

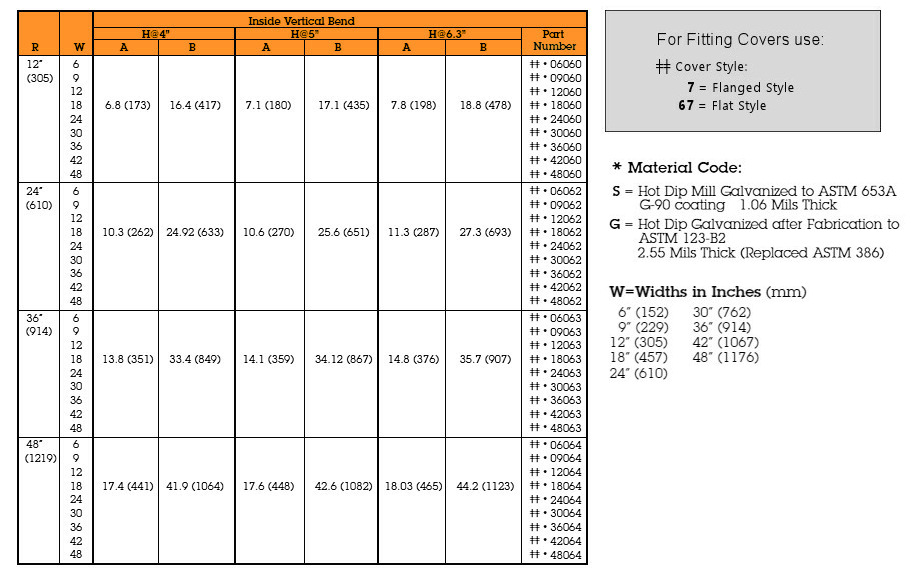

Refer to chart image below for all sizes and part numbers.
