Ladder Tray Tee, Steel
All Ladder Tray Fittings have rungs on 9" centers with 3" tangents for easy fit-up during installation.
Each Tee Fitting comes with two pairs (4) of Splice Plates and sixteen (16) 9TBN302 Nut and Bolt Assemblies.

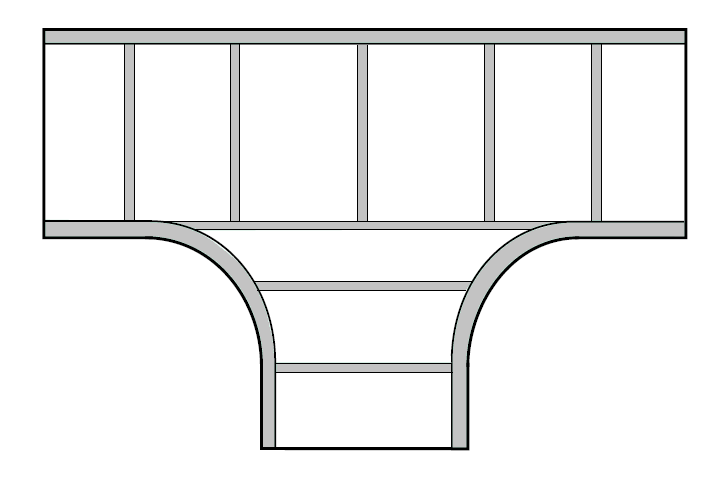

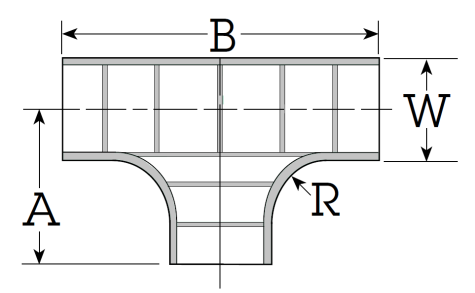

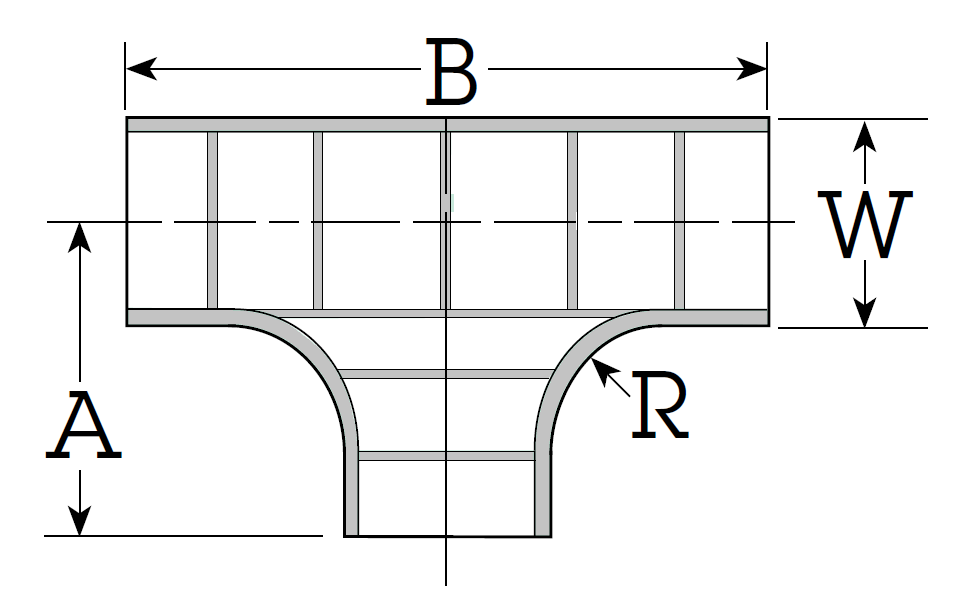

Expansion & Reducer Tees can be custom fabricated at standard Tee pricing. Specify various widths couter clockwise (using drawing at right) starting at left.

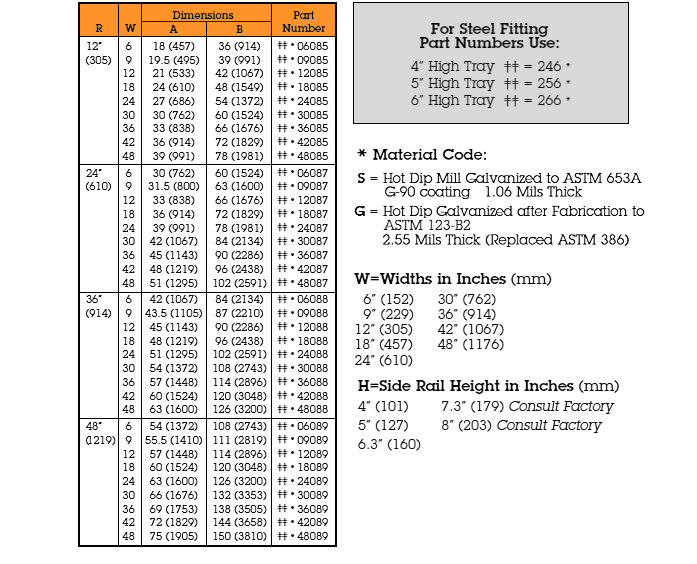

Refer to chart image below for all sizes and part numbers.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 246S06085 |
|
Tee, 12" Radius, 6" Width, for 4" Height, Hot Dip Mill Galvanized Ladder Tray | 1 | 246S06085 | |
| 246S06087 |
|
Tee, 24" Radius, 6" Width, for 4" Height, Hot Dip Mill Galvanized Ladder Tray | 1 | 246S06087 | |
| 246S06088 |
|
Tee, 36" Radius, 6" Width, for 4" Height, Hot Dip Mill Galvanized Ladder Tray | 1 | 246S06088 | |
| 246S06089 |
|
Tee, 48" Radius, 6" Width, for 4" Height, Hot Dip Mill Galvanized Ladder Tray | 1 | 246S06089 | |
| 246G06085 |
|
Tee, 12" Radius, 6" Width, for 4" Height, Hot Dip Galvanized Ladder Tray | 1 | 246G06085 | |
| 246G06087 |
|
Tee, 24" Radius, 6" Width, for 4" Height, Hot Dip Galvanized Ladder Tray | 1 | 246G06087 | |
| 246G06088 |
|
Tee, 36" Radius, 6" Width, for 4" Height, Hot Dip Galvanized Ladder Tray | 1 | 246G06088 | |
| 246G06089 |
|
Tee, 48" Radius, 6" Width, for 4" Height, Hot Dip Galvanized Ladder Tray | 1 | 246G06089 |
Hot-Dipped Galvanised
Strip Galvanised
Description
