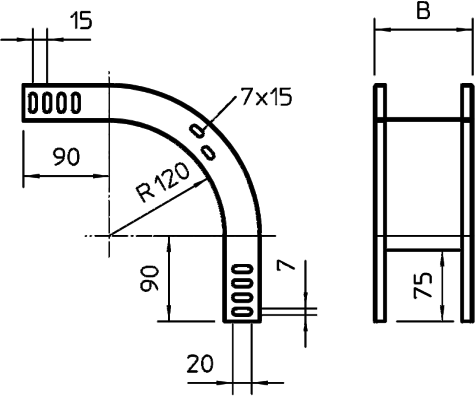

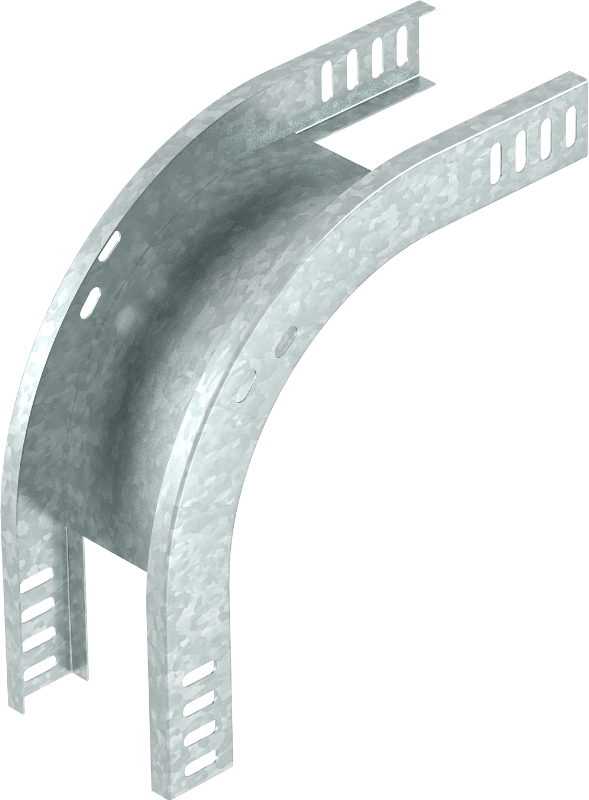

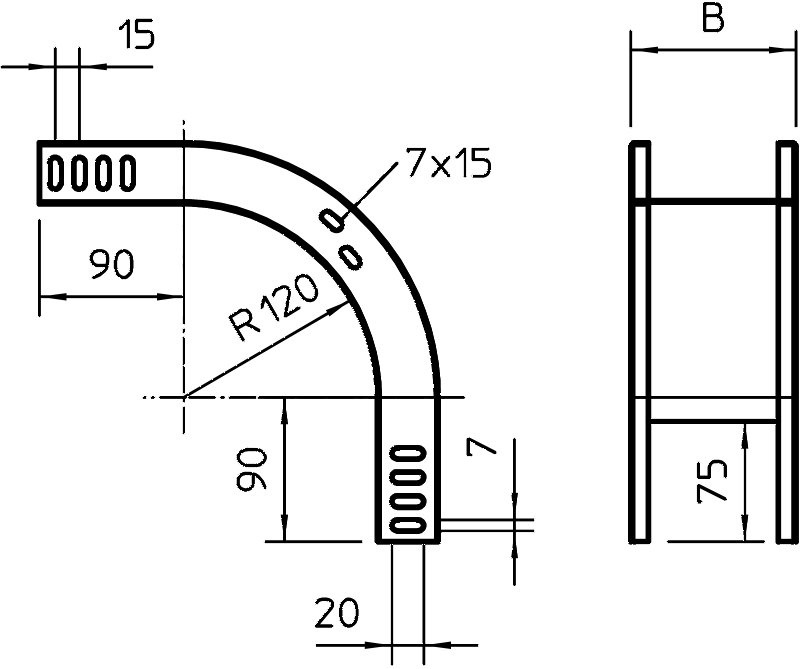

90° Vertical Bend, Falling, 1" Height
90° vertical bend, falling, for all cable tray types of 35 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| RBV 310 F FS |
|
90° Vertical Bend, Falling, 1" Height, 4" Width, Strip Galvanized | 1 | 113.98 | 7007204 |
| RBV 320 F FS |
|
90° Vertical Bend, Falling, 1" Height, 8" Width, Strip Galvanized | 1 | 152.78 | 7007212 |
| RBV 330 F FS |
|
90° Vertical Bend, Falling, 1" Height, 12" Width, Strip Galvanized | 1 | 191.58 | 7007216 |
Strip Galvanised
