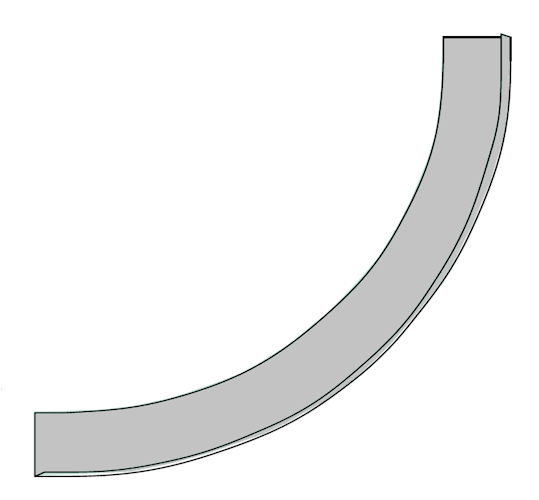

90° Inside Vertical Barrier

Part Numbers can be determined using the following information:

8ABS07 ǂ -A

ǂ = "0" for 12" radius
ǂ = "2" for 24" radius
ǂ = "3" for 36" radius
ǂ = "4" for 48" radius

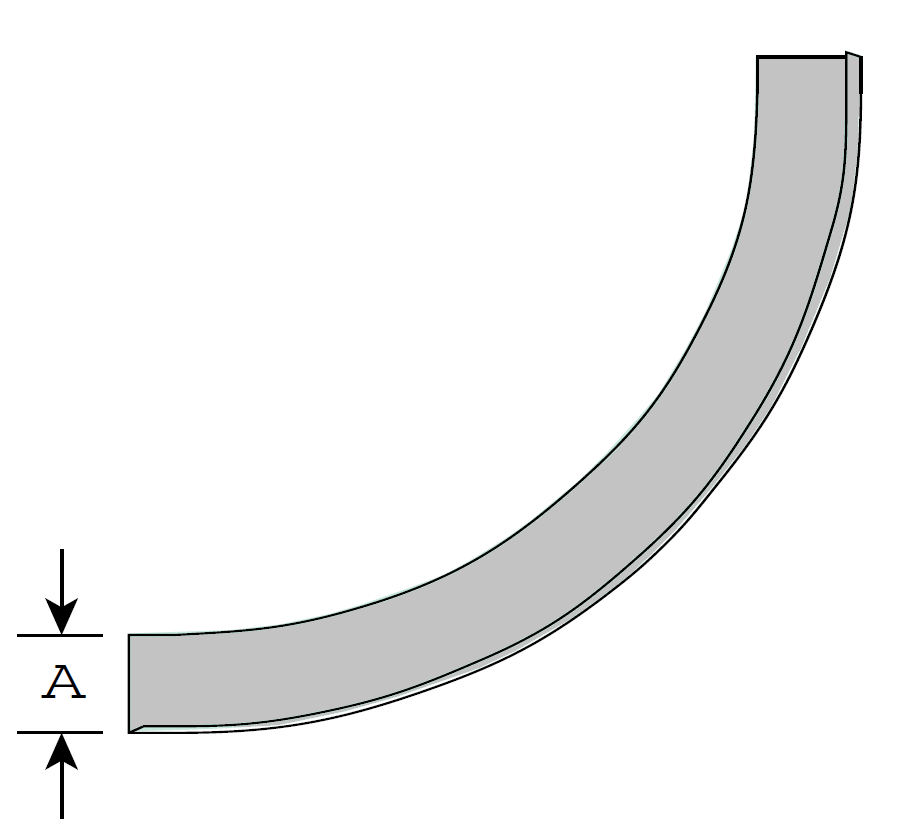

A = "3" for 3" and 4" Load Depths
A = "5" for 5" and 6" Load Depths

For example: The part number for a 90° Inside Vertical Barrier, with a bend radius of 24", and a load depth of 3", would be: 8ABS072-3.

     8ABS07 = 90° Inside Vertical Barrier (Aluminum)
                2 = 24" radius
               -3 = 3" or 4" load depth
